FRONT SHOVEL
applications
A range of excavators that are compatible with this attachment
Tunneling
Road Construction
Railways
Irrigation Canal
TECHNICAL SPECIFICATIONS
Download product brochure and browse key specifications of this model

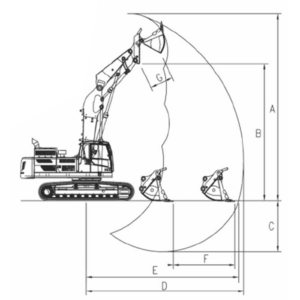

| Dimensions | SK380XDLC | SK520XDLC | SK850LC | Units | ||
|---|---|---|---|---|---|---|
| BD | TD | BD | TD | BD | ||

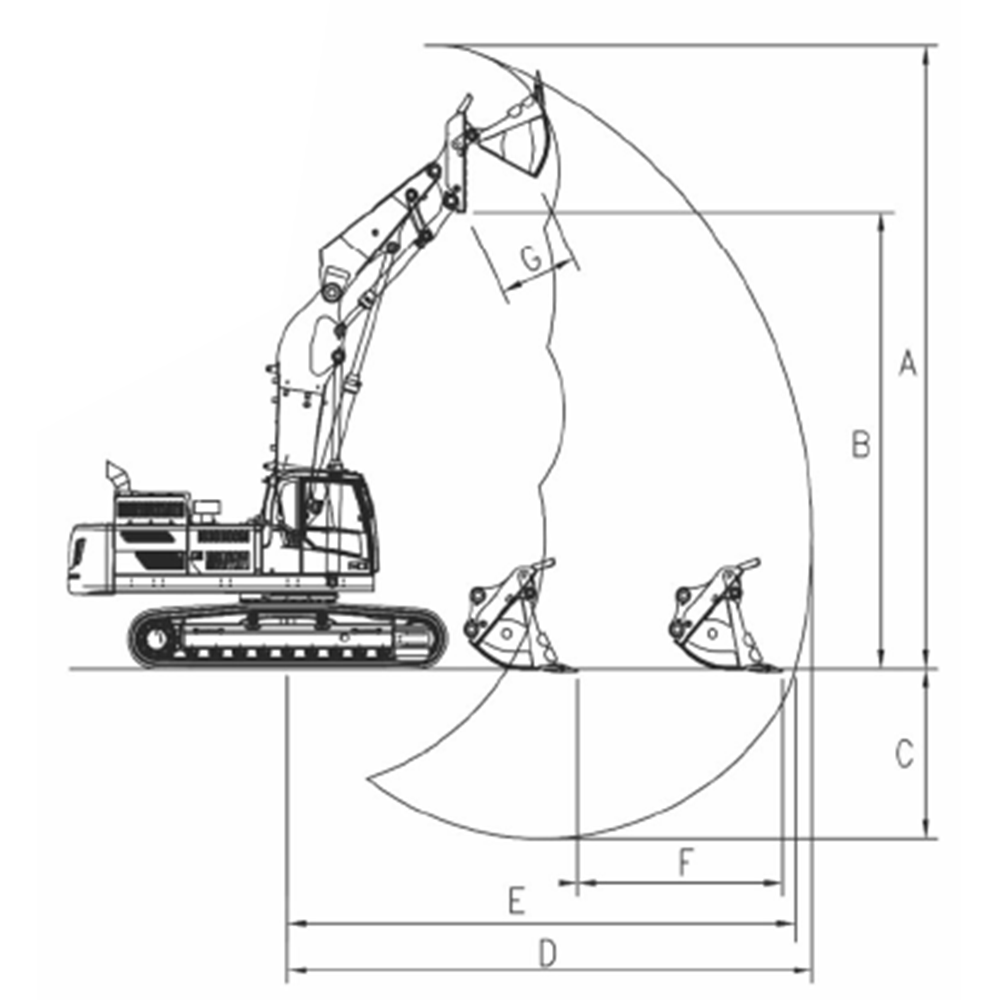

| Max. Digging Height (A) | 9650 | 10150 | 10300 | 10250 | 11250 | mm |
| Max. Dumping Height (B) | 7400 | - | 7200 | - | 8050 | mm |

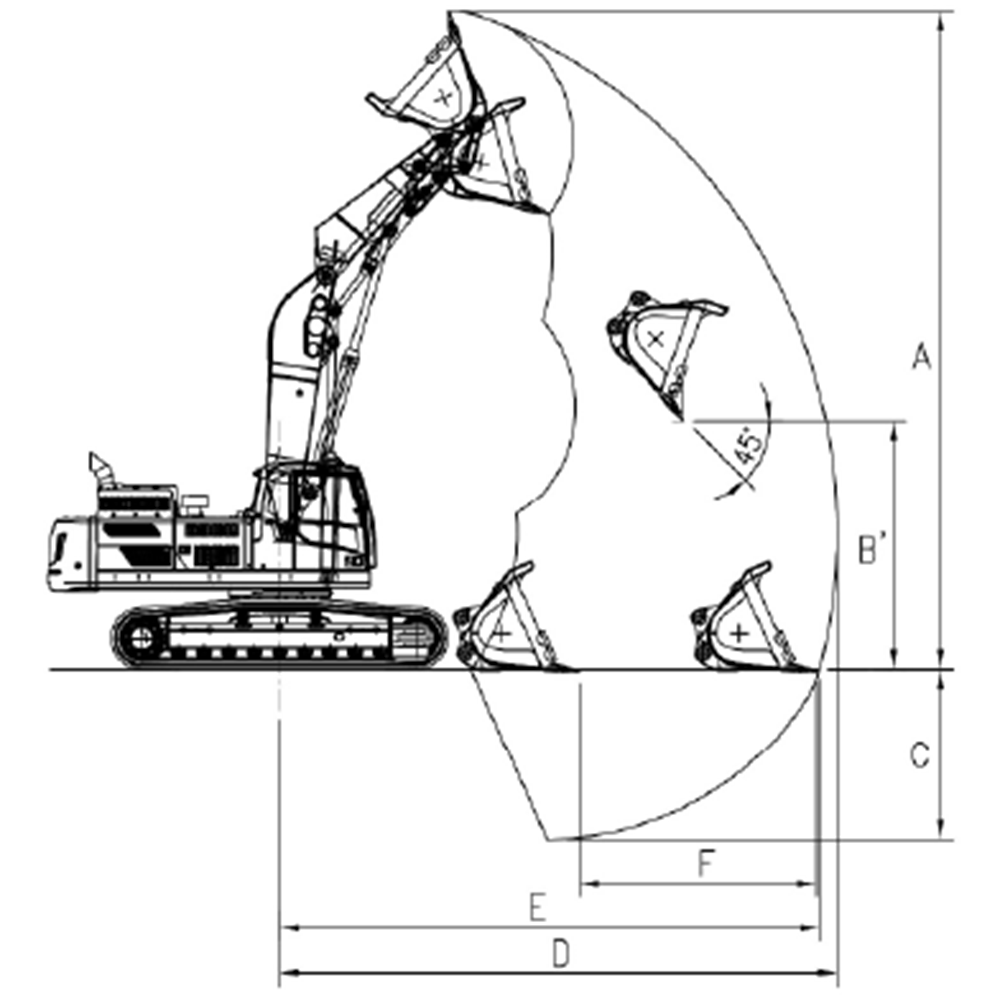

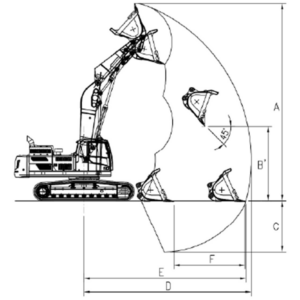

| Dumping Height (45°) (C) | - | 3850 | - | 4400 | - | mm |
| Max. Digging Depth (D) | 2720 | 2650 | 3650 | 3550 | 4150 | mm |
| Max. Digging Reach (E) | 8500 | 8600 | 8950 | 8900 | 9400 | mm |
| Max. Digging Reach (Ground) (F) | 8250 | 8310 | 8650 | 8550 | 9050 | mm |
| Level Crowding Distance (G) | 3300 | 3650 | 3500 | 2850 | 3200 | mm |
| Max. Bucket Opening Width (H) | 1260 | - | 1540 | - | 1600 | mm |
Weights of components
| Items | SK380XDLC | SK520XDLC | SK850LC | |||
|---|---|---|---|---|---|---|
| BD | TD | BD | TD | BD | ||
| Boom (with Piping) | 3150 | 3500 | 6050 | kg | ||
| Arm (with Piping) | 2400 | 2650 | 4300 | kg | ||
| Cylinders (Arm + Bucket) | 950 | 1050 | 1500 | kg | ||
| Additional Counterweight | - | 1500 | 2000 | kg | ||
| General Purpose Bucket | 2300 | 2000 | 3100 | 2700 | 6500 | kg |
| Heavy Duty Bucket | 2400 | 2000 | 3200 | 2800 | 6900 | kg |
| Extra Heavy Duty Bucket | 2500 | 2000 | 3500 | 3100 | 7300 | kg |
Dimensions of components
| SK380XDLC | SK520XDLC | SK850LC | Units | |||||
|---|---|---|---|---|---|---|---|---|

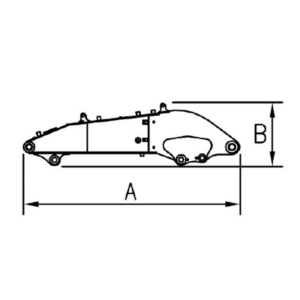

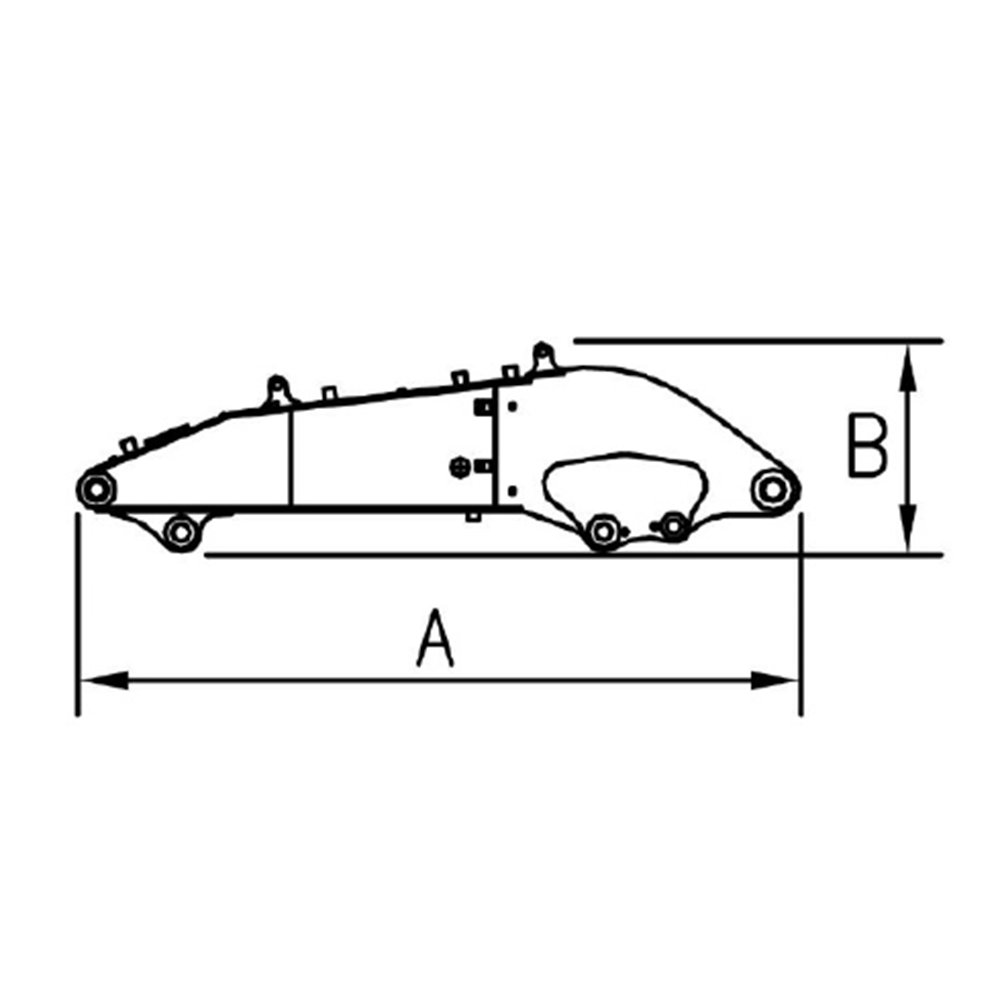

| A | B | 4300 | 1400 | 4700 | 1700 | 4900 | 1850 | mm |
| Width | 1200 | 980 | 1400 | mm | ||||

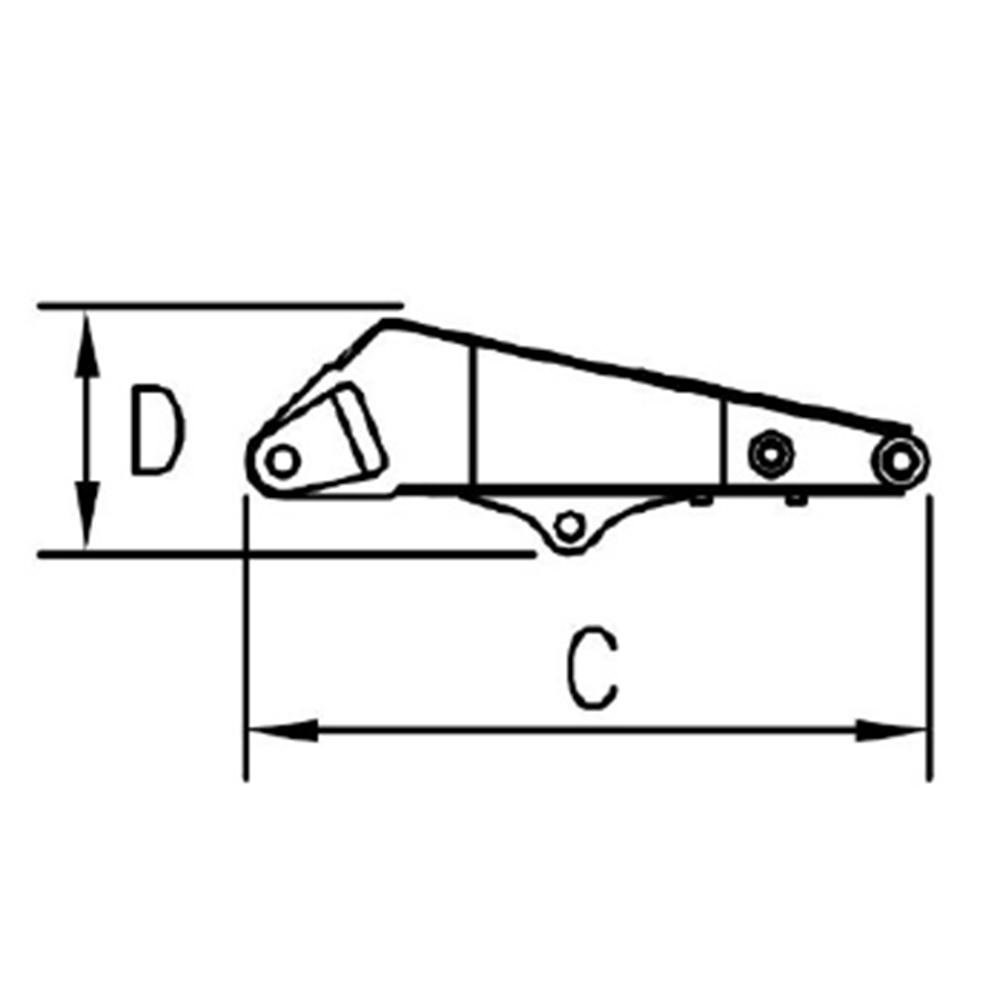

| C | D | 2900 | 2000 | 3100 | 1400 | 3400 | 1450 | mm |
| Width | 800 | 650 | 900 | mm | ||||

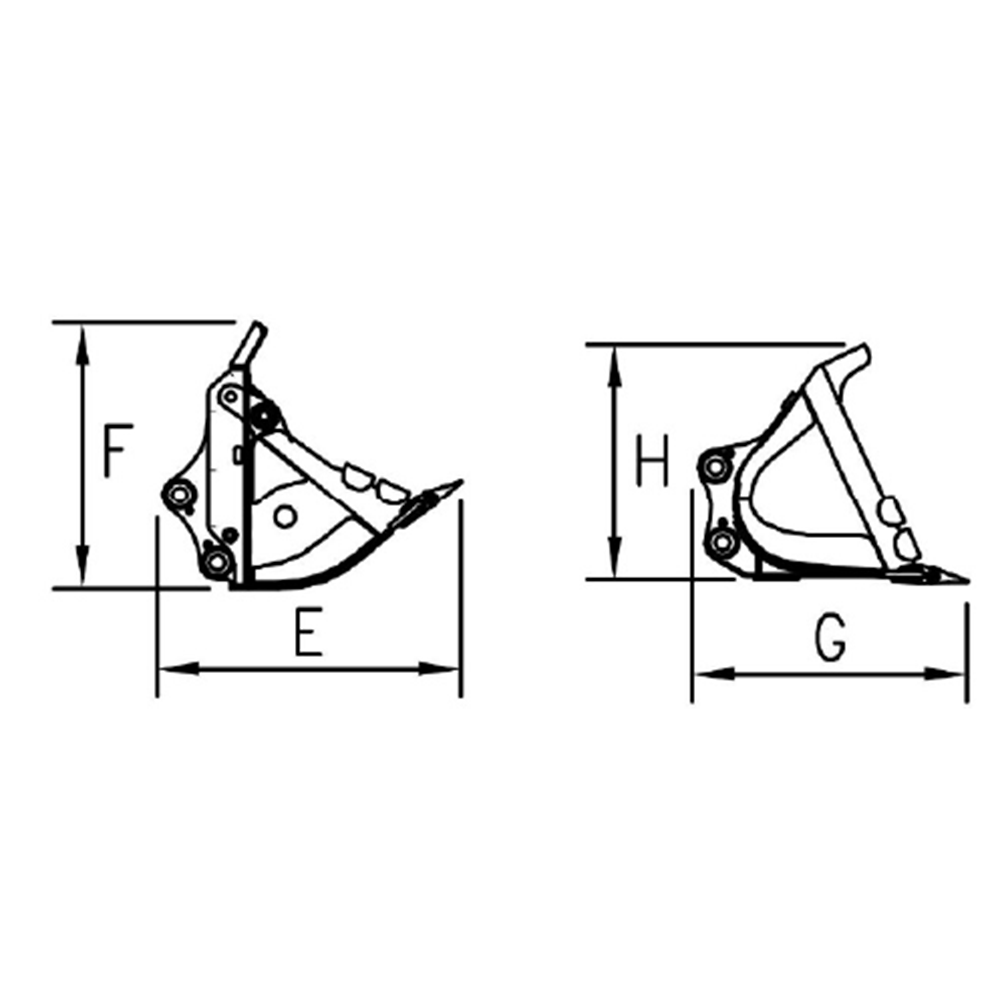

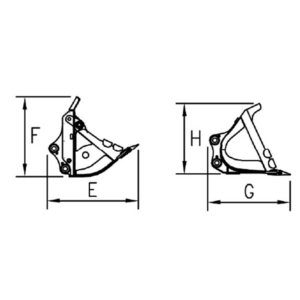

| E | F | 2200 | 2000 | 2450 | 2400 | 2550 | 2450 | mm |
| G | H | 2000 | 1750 | 2200 | 2100 | mm | ||
