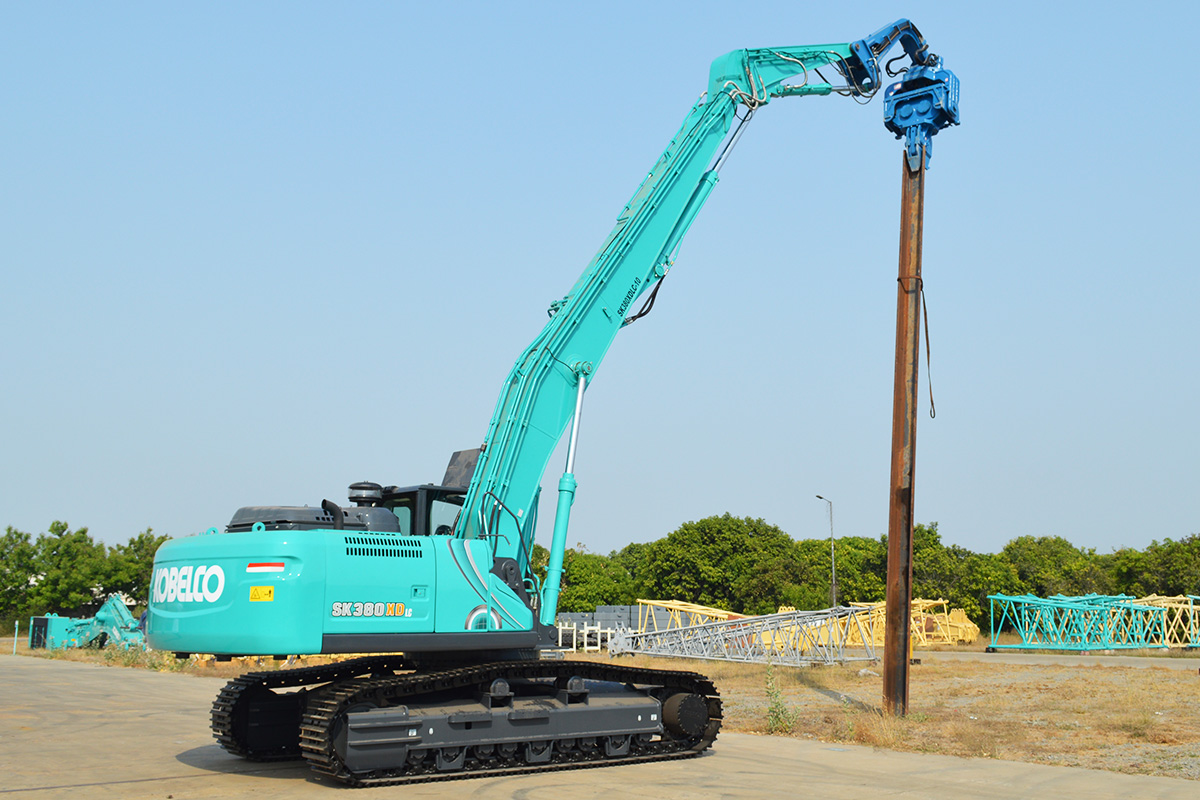

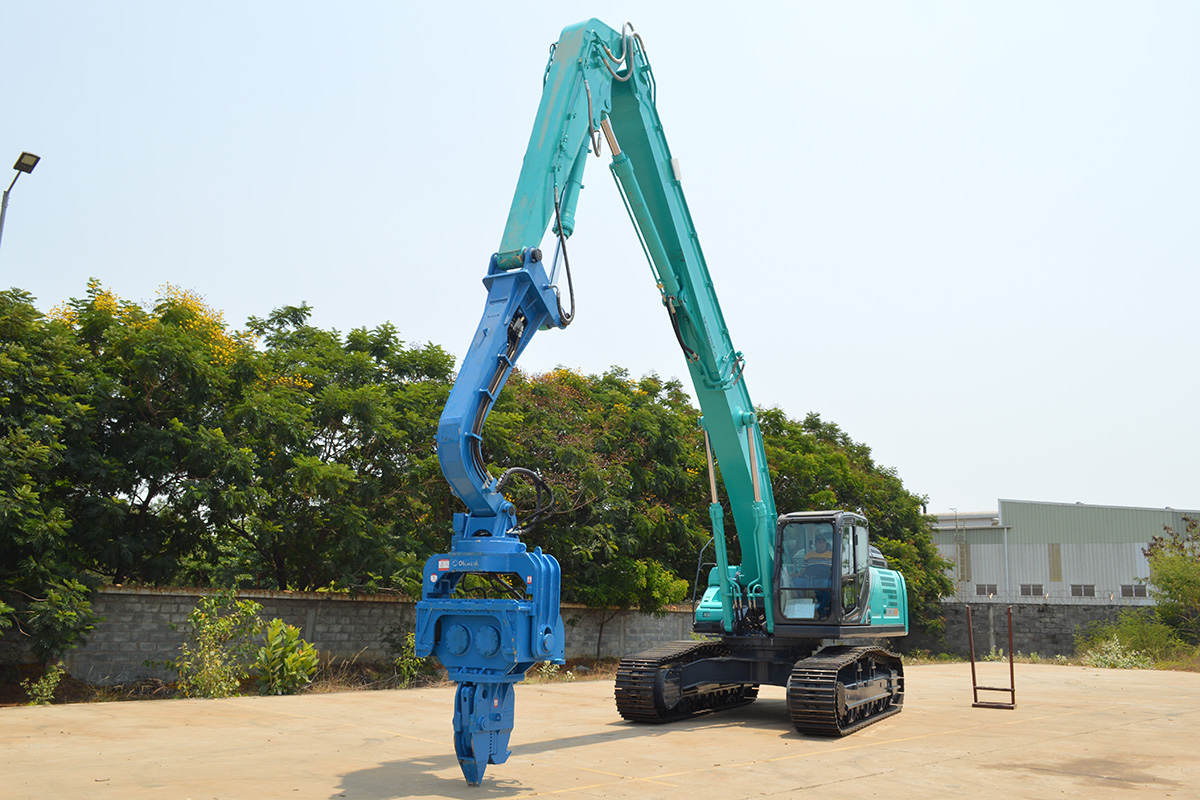

VIBRO BOOM
Driving in or extracting out of the ground for building marine docks, bridges, buildings, roads, rail, walls and many other types of foundations.
High
Reliability
High
Durability
Extensive
Application
Flexible
Gooseneck
TECHNICAL SPECIFICATIONS
Download product brochure and browse key specifications of this model
specifications
| VIBRO ATTACHMENT FOR SK380XDLC - 10 | |
|---|---|
| Straight Boom & Straight Arm | Max. Height : 16.37m |
| Boom: 8.5m, Arm: 4.0m | |
| 3 x Extra Piping for Vibro Hammer | |
| 1 x 8.5m Boom with Full Set for Hydraulic Lines |
|
| 1 x 4m Arm with Full Set for Hydraulic Lines |
|
| Specification | Units | Value |
|---|---|---|
| Model | OVH400 | |
| Speed | rpm | 3000 |
| Eccentric force | ton | 57.9 |
| kN | 567.9 | |
| Rotation | degree | 360 |
| Tilt | type | Free |
| degree | 90 | |
| Relief Pressure | bar | 315 |
| Oil Flow | L/min | 240 |
| Weight | Main Body | 2150 |
| Gooseneck | 890 (A250C) | |
| Clamp | 550 (C19) | |
| Total | 3590 | |
| Suitable Excavator | ton | 35-45 |
| Dimensions | Height | 2586 |
| Width | 1460 | |
| Thickness | 737 | |
| 1 x 2.5m “Goose Neck” for Vibro Hammer |

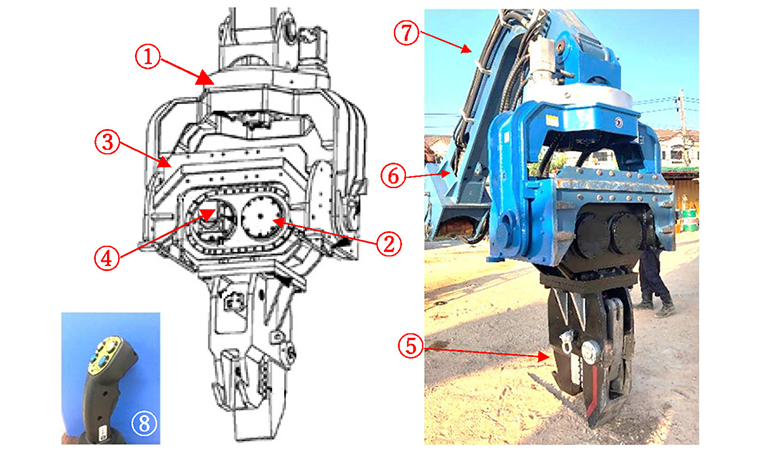

- Swivel mount
- Gear box
- Bracket
- Hydraulic motor
- Clamp
- Hydraulic system
- Gooseneck
- Control joystick
Compatible Excavators
A range of excavators that are compatible with this attachment
